Draworg¶
3D-printable drawer organiser
Features¶
- Modularity
Organisers are made of basics parts that can be assembled and dissassembled. This allows fitting almost any drawer, reorganising as needed, and reusing parts in other drawers.
- Optimal use of space
Organiser width, depth, and height can be varied by 1-cm increments to closely fit the space available inside the drawer. Divider positions are also adjustable by 1-cm increments to match the dimensions of stored objects.
- Moderate use of material
With 5-mm thick panels and no floor parts, organisers use up only modest amounts of 3D printing material. A large, 5-cm-high organiser for a 84×52-cm² drawer uses up about 1.16 kg of PLA filament.
- Freedom
Draworg is licenced under CERN-OHL-S-V2.
Examples¶

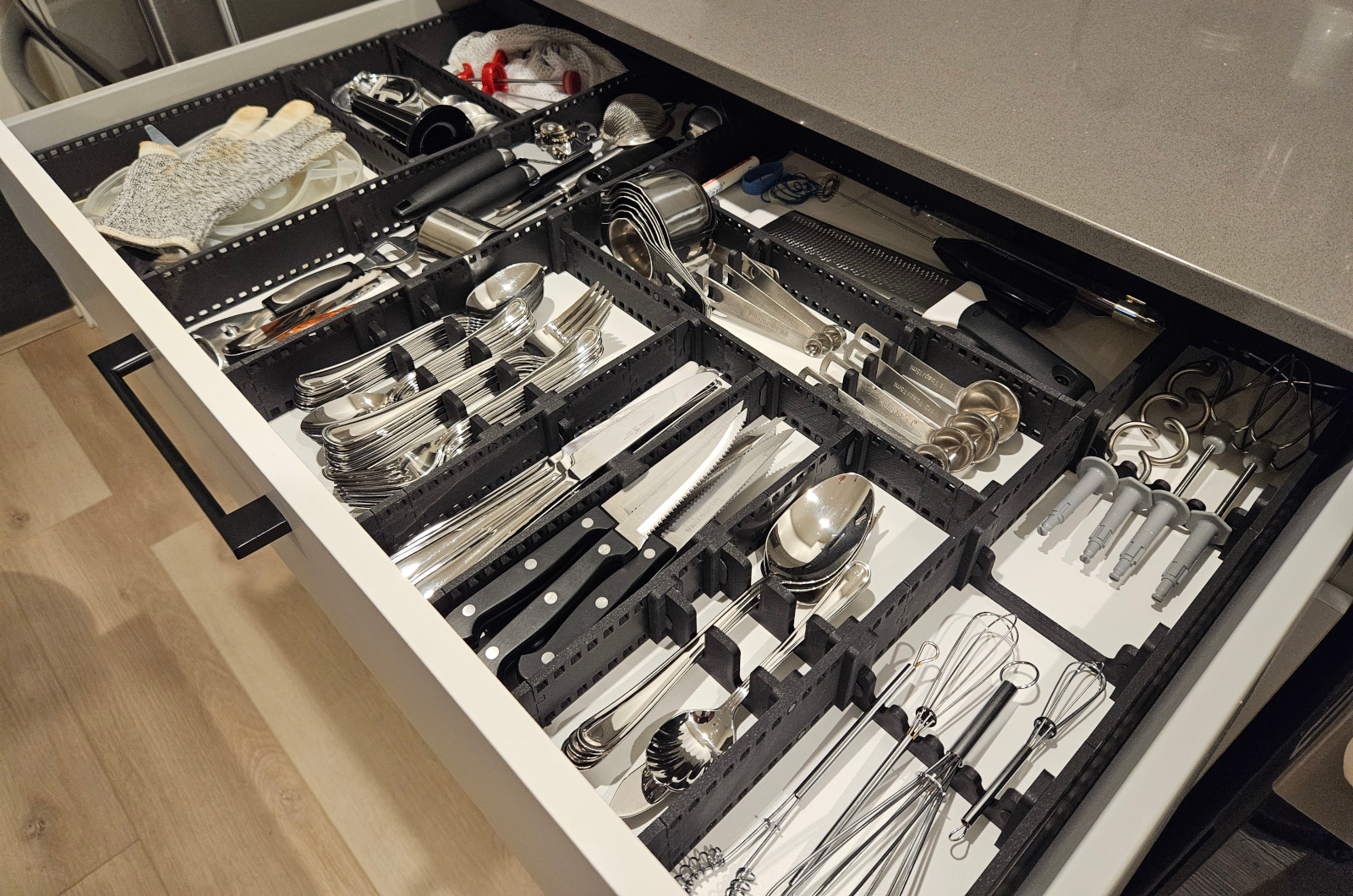

Kitchen drawer organiser (84×52×5 cm³)¶

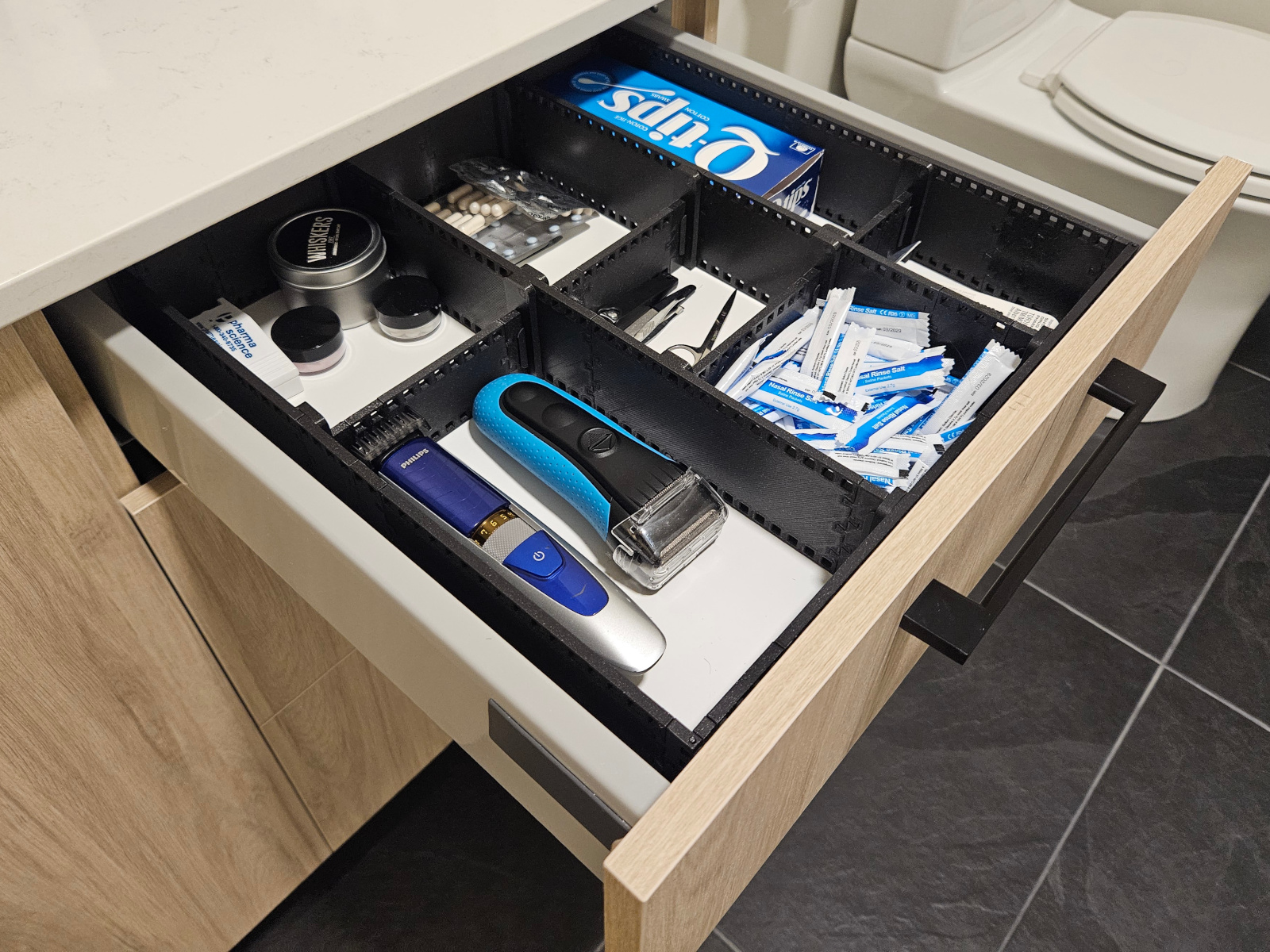

Bathroom drawer organiser (38×42×7 cm³)¶
Home Page¶
Draworg’s source repository is hosted on Codeberg. Mesh files in STL format can be downloaded from the Releases page. You can also report issues and contribute.
Documentation¶
This documentation is available online and also included with the downloadable mesh files.
